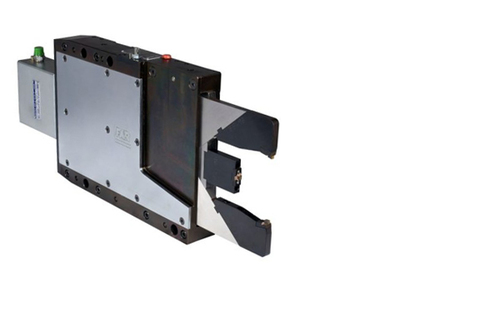

AS Series Steady rest
100000.00 - 200000.00 INR/Set
Product Details:
X
AS Series Steady rest Price And Quantity
- 1 Set
- 100000.00 - 200000.00 INR/Set
AS Series Steady rest Trade Information
- 50 Set Per Week
- 30 Days
Product Description
AS series is specially designed with retractable arms for easy vertical loading of jobs even in hydraulic cylindrical grinding machines. FAR AS series is designed to achieve is a high accuracy with a repeatability accuracy less than 0.002 mm.
FAR developed steady rests for Crank shaft Pin and Journal grinding, Cam lobe and cam grinding, cylindrical traverse grinding and angular plunge grinding,
FAR steady rests are customized to accommodate the provision of IPG, crank web clearance etc,
| Model | AS308 | AS110 | AS125 | AS235 | AS260 | AS460 | AS6011 | AS5514 | ASB8011 |
| Minimum Dia (mm) | 3 | 1 | 10 | 20 | 20 | 45 | 60 | 55 | 80 |
| Max. Dia (mm) | 8 | 10 | 25 | 35 | 60 | 60 | 115 | 142 | 110 |
| Repeatability (mm) | 0.002 | 0.002 | 0.002 | 0.002 | 0.002 | 0.002 | 0.002 | 0.002 | 0.003 |
| Centering accuracy (mm) | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 |
