GRINDING HRS (KRGU MODEL)
100000.00 - 200000.00 INR/Set
Product Details:
X
GRINDING HRS (KRGU MODEL) Price And Quantity
- 1 Set
- 100000.00 - 200000.00 INR/Set
GRINDING HRS (KRGU MODEL) Trade Information
- 50 Set Per Week
- 30 Days
Product Description

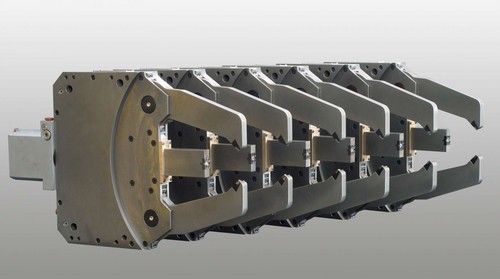

This series is specially designed for crank shaft grinding to accommodate the maximum eccentric throw and journal diameter of crank shafts. Custom made design are available to accommodate in-process gauge and vertical loading.
| Model | KRGU790 | KRGU1517 | KRGU4510 | KRGHS9585 | KRGU502 | KRGU580 | KRGU1019 |
| Minimum Dia (mm) | 70 | 150 | 45 | 95 | 50 | 50 | 100 |
| Max. Dia (mm) | 90 | 170 | 105 | 185 | 102 | 80 | 190 |
| R Value/ Eccentric throw (mm) | 120 | 175 | 125 | 145 | 115 | 112 | 122 |
| Repeatability (mm) | 0.005 | 0.004 | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 |
| Centering accuracy (mm) | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 |
